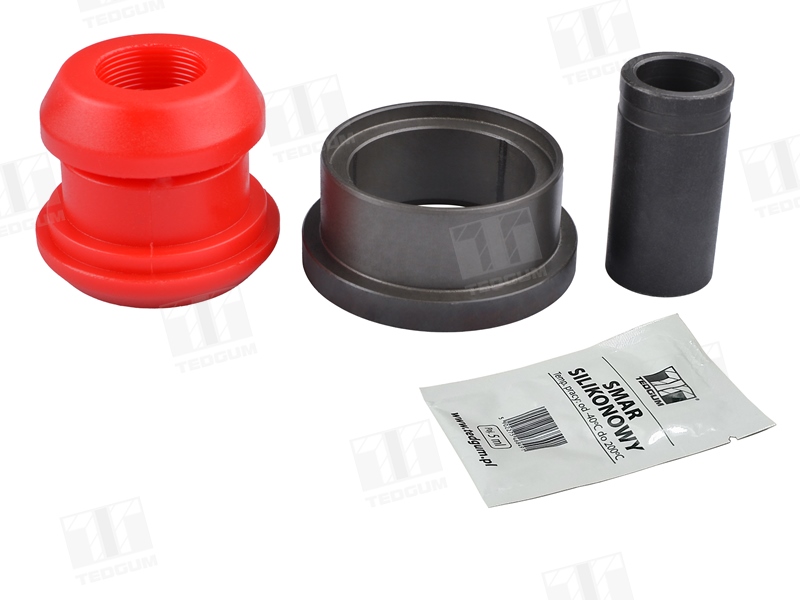

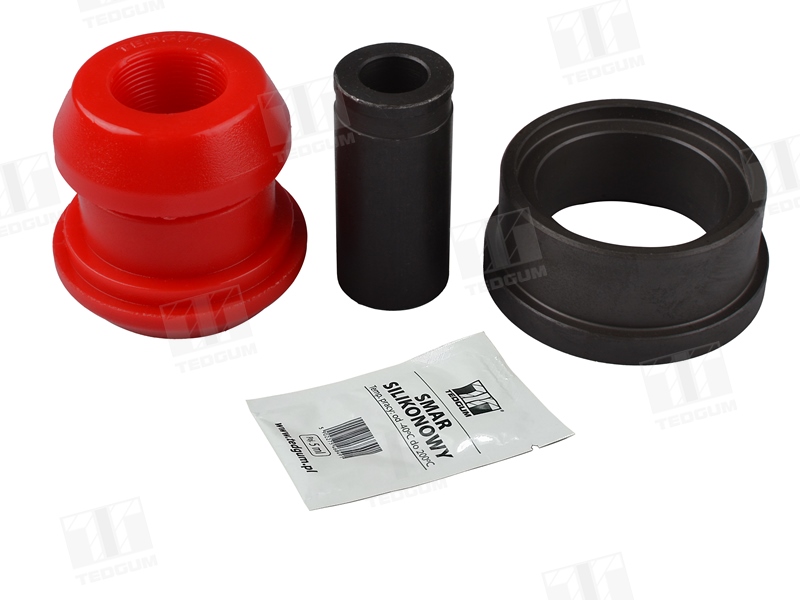

Polyurethane bushings often come in three-piece designs, consisting of a metal outer sleeve, a polyurethane center, and a metal inner sleeve. Proper assembly of this component is not complicated and typically does not require specialized equipment. However, it is important to follow the assembly sequence, paying attention to the correct pressing directions. It is important for the TED85833 and TED59795 bushings, that both the metal outer sleeve and the polyurethane bushing are asymmetrical.
Below are the assembly instructions:

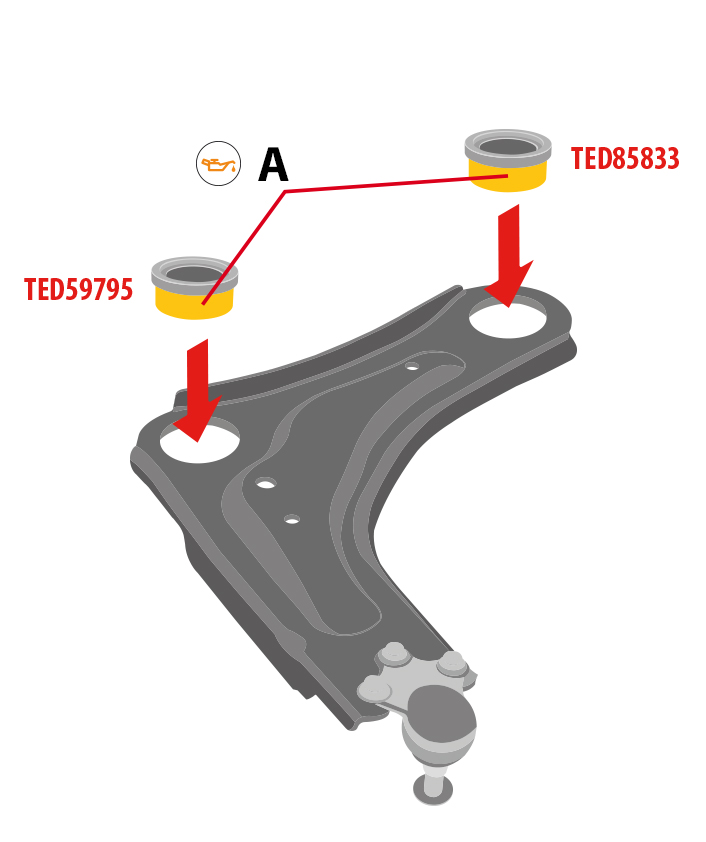

1
A – Surfaces that need to be lubricated

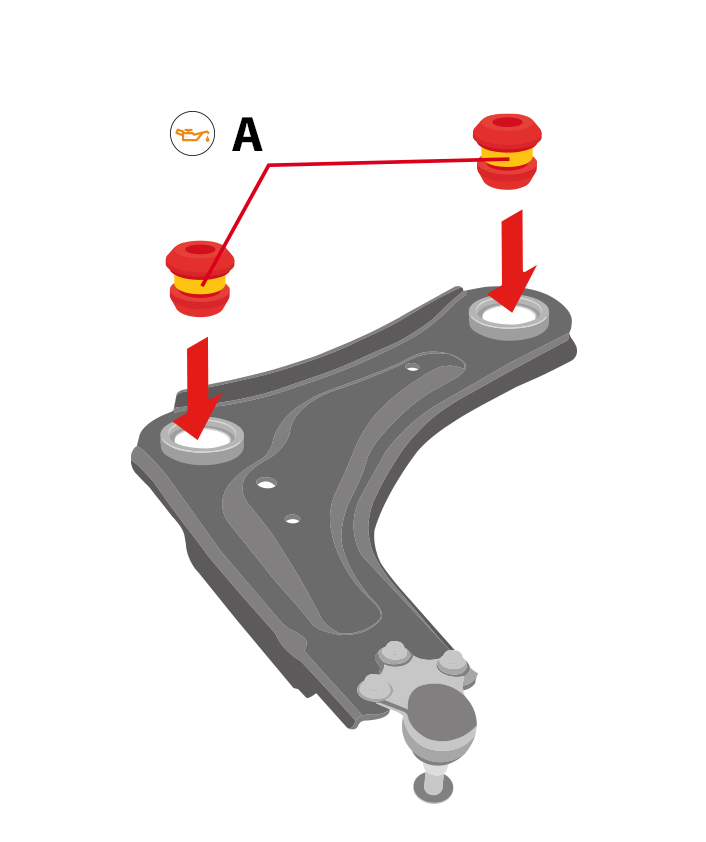

2
A – Surfaces that need to be lubricated

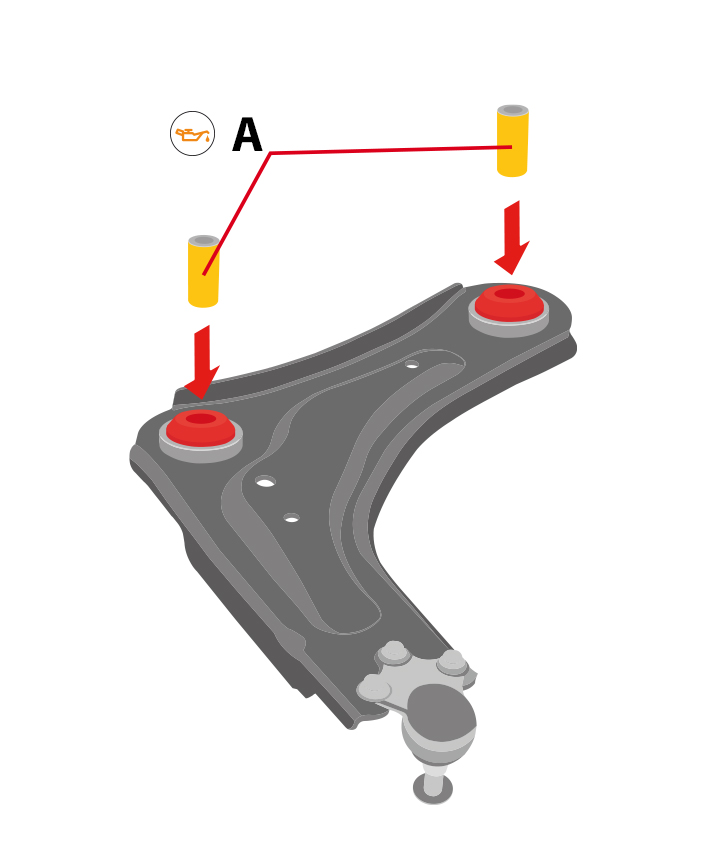

3
A – Surfaces that need to be lubricated

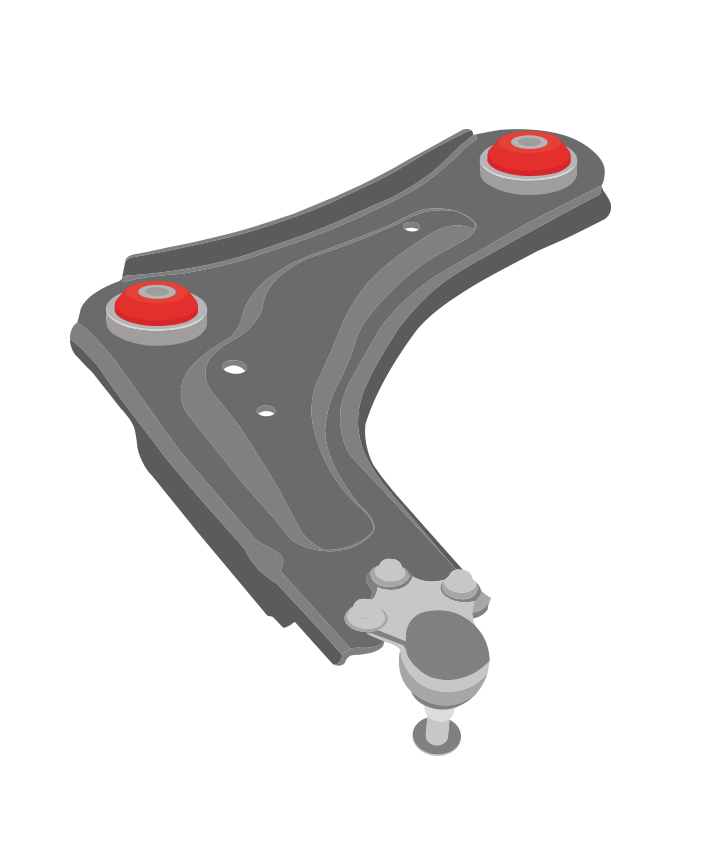

4
